Handling robots

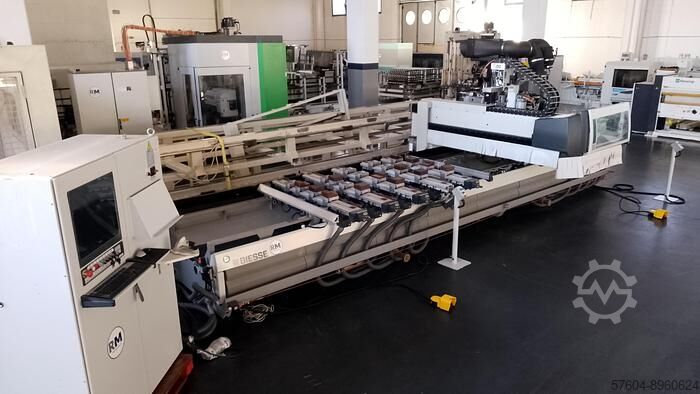

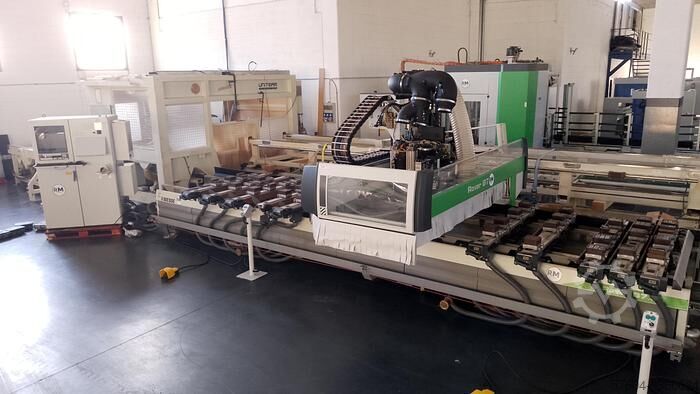

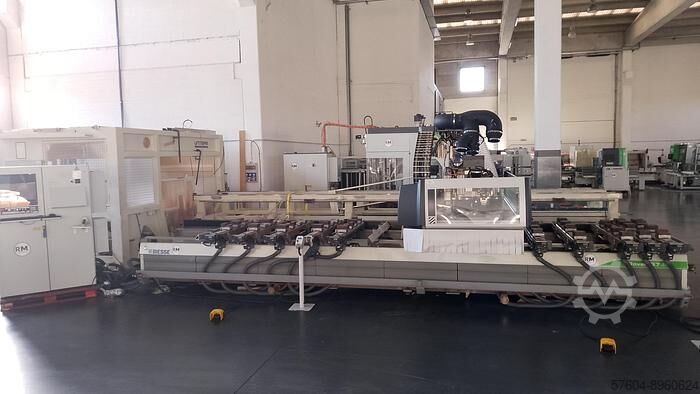

Biesse Rover B 7.65 (+ KR210-2)

Working center with automatic robot for panel loading and unloading management

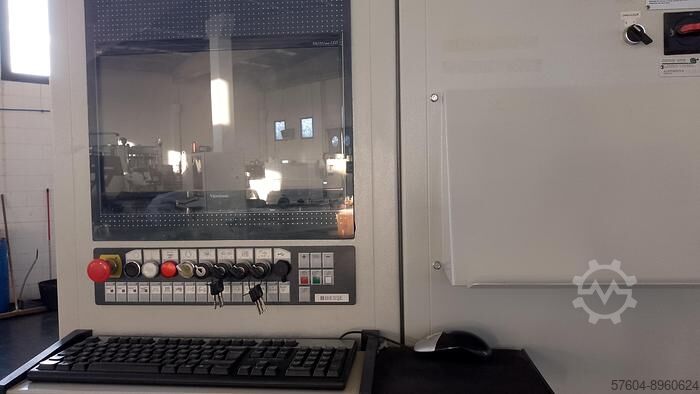

Biesse XP600 Numerical Control with Biesse Works ADVANCE graphic interface software - machine version and version
office - WRT technology (Widows real time) the machine control logic is processed directly on the PC and not on a
dedicated special device
Working field in X axis 6200 mm
Working range in Y axis mm 1552
Working field in Z axis 180 mm
Z axis travel mm 235
N ° 2 work fields in X axis
Bar worktop \ console

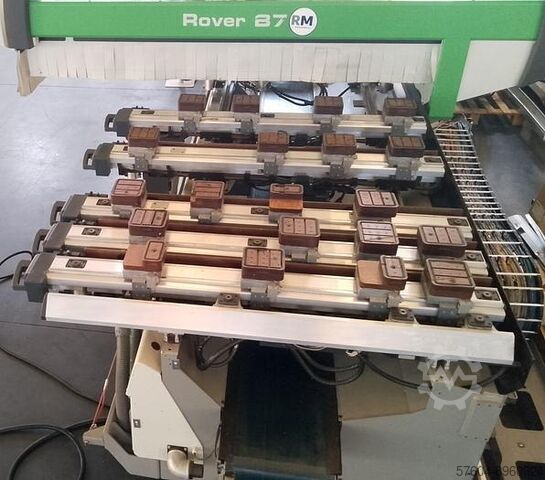

No. 10 EPS electronically adjustable bars for suction cup support
N° 8 pneumatic bakelite bars for lifting the panel - loading / unloading aid
N° 4 EPS electronically adjustable suction cups for each bar with vacuum seal for fixing the panel during
the processing

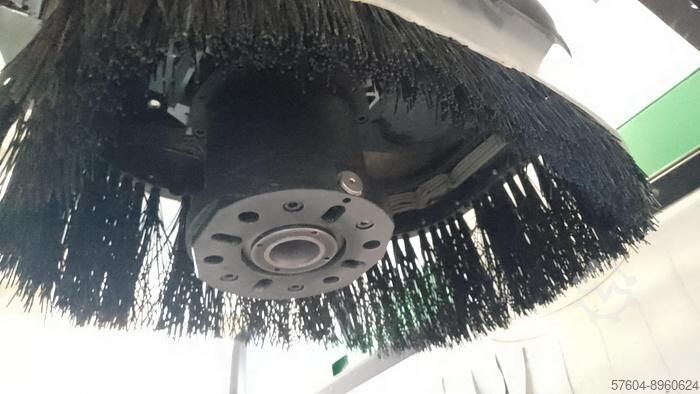

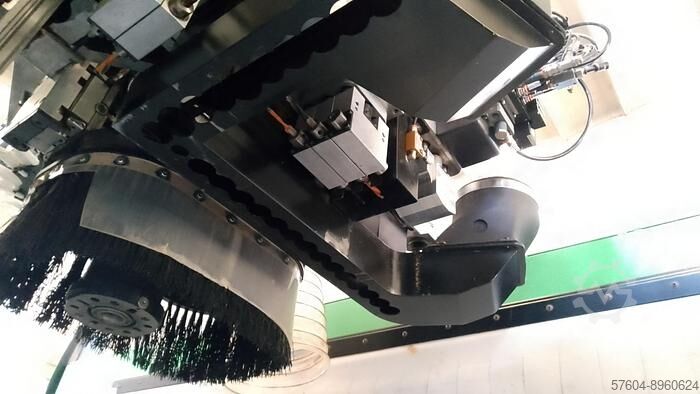

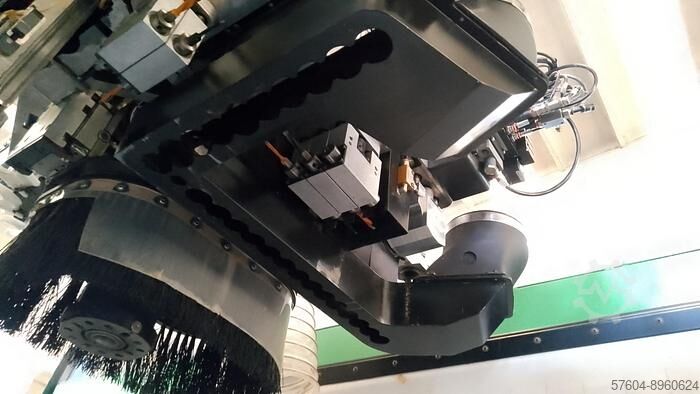

N° 1 vertical electrospindle, with automatic tool change, motor KW 12 - 12000 RPM - flange for aggregates -
preparation for C-Axis Vector

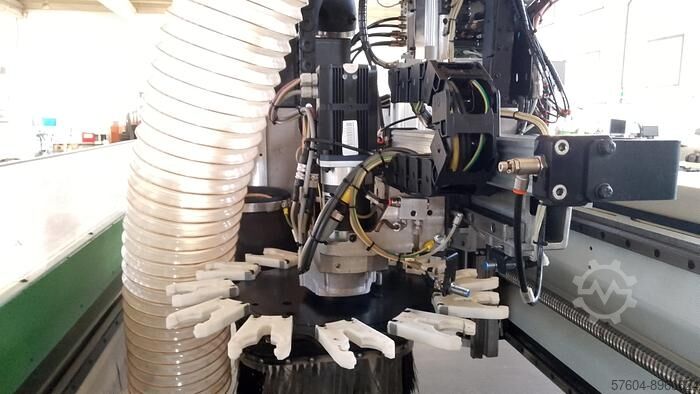

Automatic tool change system with 12 positions - positioned on the machine head
BH35L boring head with spindles arranged as follows:
- N° 14 verticals in X axis
- N° 10 vertical in Y axis
- N° 6 horizontal in X axis
- N° 4 horizontal in Y axis
Independent blade for making grooves in the X axis - diam. 120 mm
Front protection and safety system with carpets
Perimeter protection grids

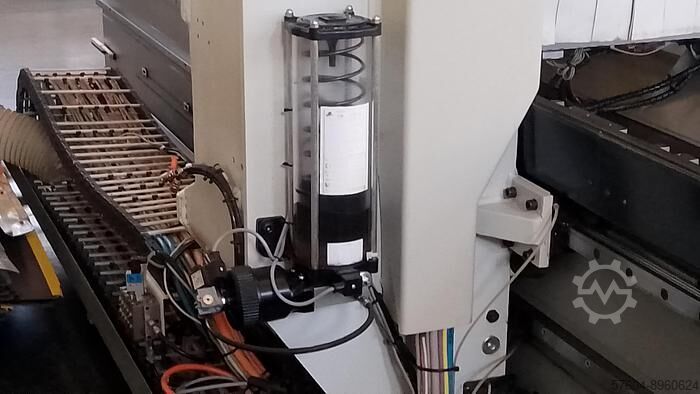

Automatic lubrication system
Machine control cooling and cleaning system with conditioner
Vacuum pump mc / h 250
Kuka industrial robot with 6 articulated axes with point-to-point positioning.
Bodpfx Acokvrxus Ueww

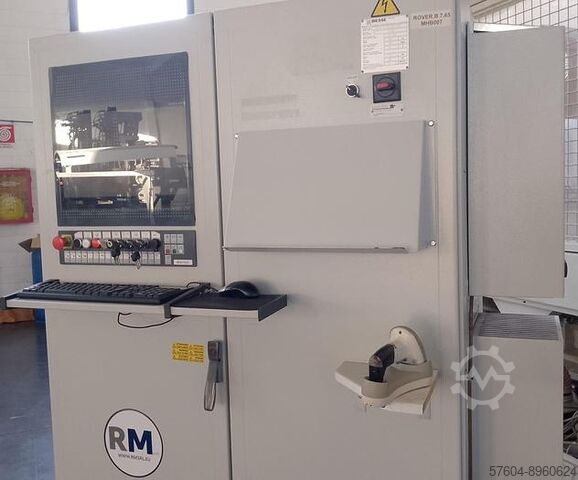

Independent control panel
Panel alignment table

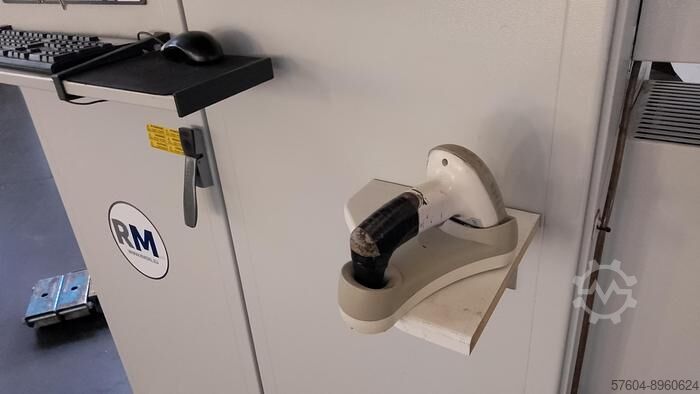

Barcode reader on the robot arm
Panel introduction system via:
* 1 motorized roller conveyor for panel stack preloading
* 1 translating motorized roller conveyor
* 1 motorized panel stack unloading roller conveyor
Technical features:
* Type : KR210-2
* Number of axles : 6
* Admissible nominal load : Kg 210
* Machine weight : Kg 1267
* Sound level: 75dB
* Installed power: 25.8 kW
* Panel dimensions - Min\max length: mm 300\3000
* Panel dimensions - Min\max width: 180\1500 mm
* Panel dimensions - Min\max thickness: 8\60 mm
* Max panel weight: Kg 90
