Wide belt sander

Casadei - SCM - sofort verfügbar - Libra 35/2 RTC 110

CASADEI Libra 35 - Wide belt sanding machines in a two-belt configuration
immediately available - from stock in 54634 Bitburg

Technical data
Sanding width 1100 mm
Min. / max. working height 4 / 170 mm
Sanding belt width 1115 mm
Sanding belt length 1900 mm
Feed speeds 4.5 / 9 m/min
Feed motor 0.33/0.55 kW
Motor power, table adjustment 0.25 kW
Power of drive motor 11 kW
Electrical voltage 400 V
Phase(s) 3 phases
Mains frequency 50 Hz
Length 1650 mm
Width/Depth 1820 mm
Height 1960 mm

Image shows optional equipment
Wide belt sanding machine in a two-belt configuration up to 1100 mm with numerous optional features for cost-conscious workshops
Robust, tubular reinforced monoblock steel machine body with work units mounted high up for maximum rigidity

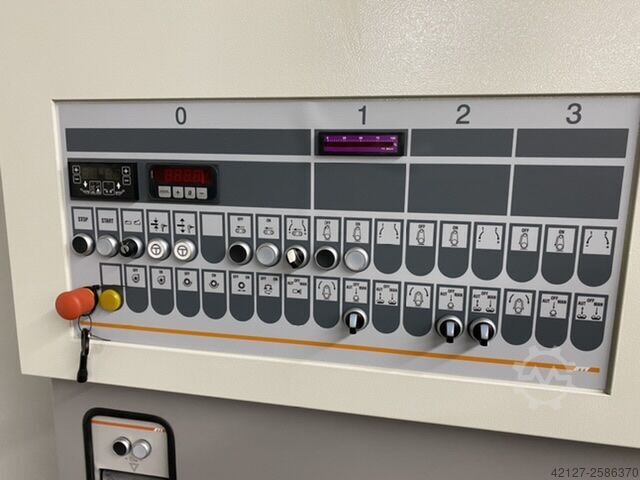

User-friendly due to clear control panel on the front
Motorized table height adjustment
Digital display for the working height
Electronically controlled sanding belt oscillation with reduced compressed air consumption
Automatic star-delta start for the main motor
Natural rubber feed belt with a negative profile
Support table with two rollers at the infeed and outfeed of the feed belt
Belt feed via geared motor with two speeds
Flexible steel pressure bar in front of the first unit
Rubber pressure rollers, before and behind each work unit
Pneumatic belt tension per unit with decimal correction option for grain size/belt thickness
Quality - Made in Europe

RTC version
1st unit with grooved steel roller Ø 120 mm and fine adjustment for calibration
2nd unit Combination unit with finely adjustable working height for calibration and fine sanding with rubber-coated roller Ø 120 mm (45 Sh) and hard sanding shoe with graphite coating on a replaceable insert

Scope of delivery:
Work table height adjustment with electronic display of the working height
Oscillation of the sanding belts with an electronic system
Rubber-coated, grooved pressure roller at the infeed, 1° position with anti-rollback protection (C.E.)
Star-delta start of the main motors
Grooved calibration steel roller
Selector switch for positioning the sanding shoe from the control panel

Crjdpscr S Ecjfx Ai Toi
Accessories: - Semi-hard flat sanding shoe
- Automatic belt centering

Location: From stock in Bitburg - at a special price
