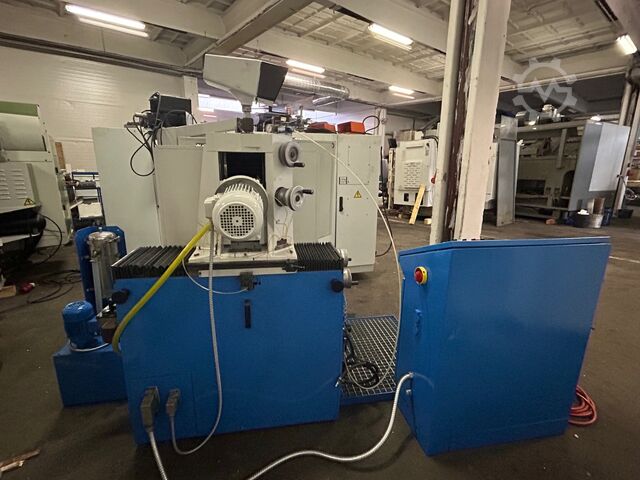

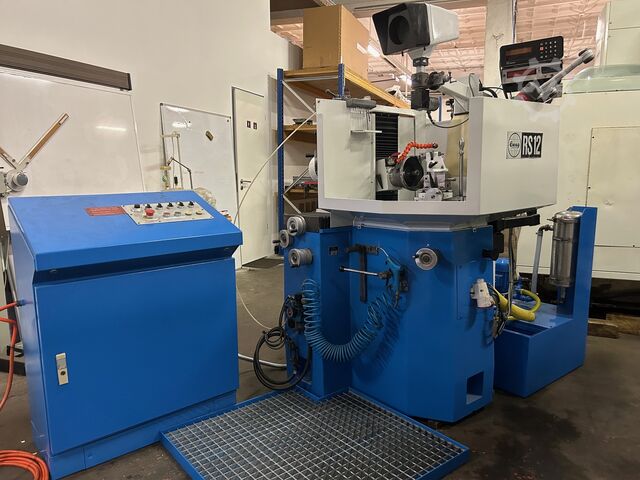

Tool grinder

EWAG RS 12

Grinding wheelhead:
- motor power : 2,2 kW
- spindle speeds : 1 000 - 8 000 rpm
- spindle inclination (A-axis): -10° up to +27°
- setting accuracy 1 min
- height adjustment (Y axis) : 130 mm
- stroke range (X axis) : 220 mm
- oscillation stroke, steplessly adjustable during oscillation : 0-30 mm
- oscillation frequency : 30/60 1/min

Workhead:
- radius setting (Z axis) : 0.01-50 mm
- setting accuracy: 0,01 mm
- retraction of slide from the grinding to the measuring position : max. 49 mm
Bwedpfjvmpabox Ac Uew
- cross table, clamping surface : 155 x 205 mm
- travel X - Y : each 60 mm
- maximum swivelling angle (B axis): 260°
- supply voltage : 380 V
- weight : 1200 kg

Accessories/options:

- grinding pressure variable
- projector fixed in measuring position
- 1 cabinet with accessories

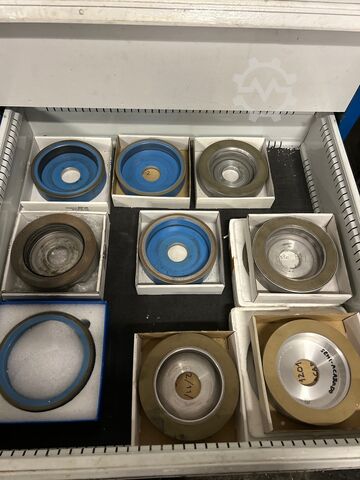

- different grinding wheels, flanges
- coolant tank
- documentation


Under power in our warehouse.
