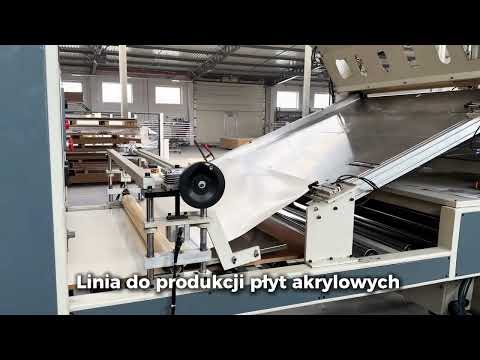

Laminating line for acrylic and PET sheets

MASTER PUR 1400 Panel Laminating Line

Panel Laminating Line for AKRYL, PET, PVC, HPL, CPL
MASTER PUR-1400

Professional line for single-sided laminating of panels using PUR hot melt adhesive.

Application:
Bedpfszkmqbex Ac Uolp
The machine is designed for laminating:
MDF
particleboard
plywood
PVC boards
gypsum boards
other wood-based materials
Supported finishing materials:
AKRYL
PVC
HPL
PET
CPL
decorative paper

Technical specifications:
Working width: 1400 mm
Maximum panel size: 2800 × 1300 mm
Panel thickness: 2–40 mm
Operating speed: 5–17 m/min
Output: 3–5 pieces/min
Maximum output: approx. 1200 pieces/8 h
Drive power: 21.49 Kw
Heating power: 51.7 Kw
Line dimensions: approx. 16 × 2.5 × 2 m
Required floor space: min. 6 × 22 m

Line equipment:
feeder with roller conveyor
brushing machine for cleaning panels
IR oven for preheating the material
3-roller PUR adhesive applicator
foil feeding station
roller nip press
receiving conveyor
208-liter PUR adhesive melting tank

Advantages:
high surface quality
even adhesive application
possibility of laminating high-gloss films
low adhesive consumption
stable operation in serial production
