Laser cutting machine

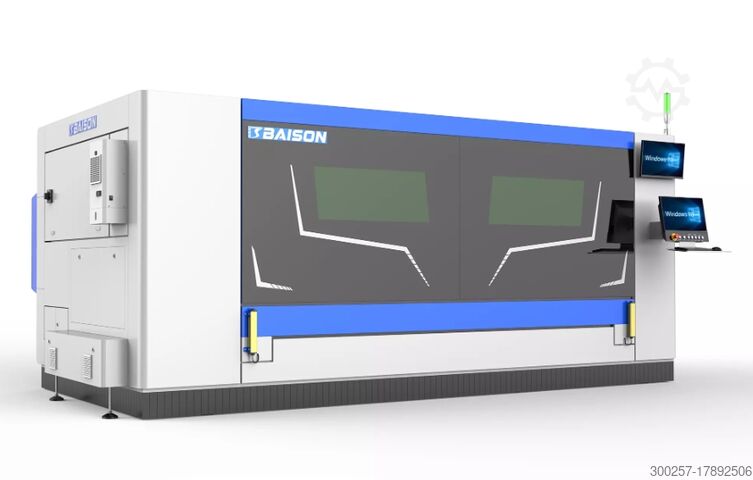

BAISON Laser M3 3kW 3x1.5m compact laser cutting

Description BAISON M3: (3 kW) from stock Europe.
table length 3.050 mm
table width 1.530 mm
laser head Ray-tools autofocus
Csdpfxjvcbf Io Ai Teri
laser capacity in Kw 3 Raycus
total power requirement 25-30 kW
We can deliver from (1 till max 6 Kw)
overall dimensions 4750x2260x2100 mm
weight of the machine ca. 4.550 kg

Configuration:
- Raycus Laser source 3 Kw (opt. other laser power)
- Cypcut (full option control)
- High integrated, simple operation, leading technology
- Ray-tools autofocus cutting head
- Nesting, With leapfrog, Edge seeking, Fly cutting
- 2x LCD monitor control, keyboard, control panel
- central Lubrication system
- video camera inside machine

Cutting capacities:
- normal steel 20 mm
- stainless steel 12 mm
- aluminum 10 mm
- brass 8 mm
- copper 8 mm

Axes:
- Machine axes: 3 axes (X, Y, Z,)
- X-axis travel 3050 mm
- Y-axis travel 1530 mm
- Z-axis travel 100 mm
- Axis speed X / Y: 120 m / min
- Positioning accuracy: +/- 0.03 mm/m
- Repeatability accuracy +/- 0.03 mm
– Acceleration max. 1,2 G

Table platform 1500mm complete outside for leading:
- table load 1000 kg.

assisting gases:
- mild steel - oxygen (0.5 - 2 bar)
- stainless steel - nitrogen (5 - 16 bar)
- Aluminium - compressed air or nitrogen (5 - 16 bar)

 
including:
- Complete safety features for CE
- Safety relay
- Protection grade IP54
- Spare part basic supply package with nozzles and lenses
- Professional software for cutting and nesting metal sheets
- AC unit for electrical cabinet
- Pneumatic table holders clamps for thin metal sheet, anti-vibration system
- Automatic door-up and table-out system
- Dual temperature water cooling system

- Machines for cutting sheets metal
- Fiber laser is the green laser technology for the future
- (Saving of at least 50% energy costs)
- Components / therefore very low-maintenance
- Save up to 50% per part through more efficient production
- In addition, precise cuts and smooth surface quality
- Heavy-duty constructed frame,
- equipped with world-famous, durable, high-quality components
- Light barrier for moving table, safety protection
- Complete CE standard

Price is EXW (Stock Europe), Include loaded on truck.
Transport, installation, commissioning, training, and yearly service contracts
are available upon request for an additional fee.
Installation and training is always done by our high qualified
Service team in 3 locations in Europe.
Netherlands, Germany, Romania.
