Miter saw

Graule - sofort verfügbar - - ZS 200 N mit RLH und RO

Cut-off and miter saw, type: ZS 200 N - 5 KW motor
with machine stand,

Machine operated via handwheel and worm gear (rear)
Tiltable

Saw blade diameter 520 mm, saw blade arbor bore 50 mm
Saw blade speed: 2800 rpm
400 volt / 5 KW (S6/40%) motor with brake and automatic star-delta motor switching
Cutting width at 90 degrees: 420 mm
Cutting width at 45 degrees: when tilted: 295 mm
Cutting height at 90 degrees: 200 mm
Cutting height at 45 degrees tilted: 140 mm

The saw can be tilted to an acute angle of up to approx. 25 degrees on one side and can be tilted to the left up to 30 degrees.

Tungsten carbide circular saw blade 520x4.0/2.8 x 50 mm, 60 teeth, negative bevel, for wood

RLH-ST60, 6.0 m measuring length, mounting side: Left
Length stop / roller conveyor, heavy-duty design,
Stop slide adjustable from the workstation via handwheel,
electronic-digital measuring display, stop slide pneumatically releases, stop flap folds back, with steel rollers 60 mm diameter, roller spacing 200 mm, 400 mm roller width, with 4 support feet and connecting piece: overall length: 6.7 m
Codpfx Aek H Ic Ujmnohd

Additional cost for digital electronic display unit type: FIAMA EP6 for 230 volt mains operation, with electronic on/off switch and socket. Bright dark red LED display. Higher accuracy than the battery-powered crystal display.

RO-ST60, 4.0 m long feed roller conveyor
Mounting side: Right
Heavy-duty design, steel rollers: 60 mm
diameter, roller spacing: 200 mm
400 mm roller width, 3 support feet and connecting piece

Location: In stock, 54634 Bitburg
- immediately available -

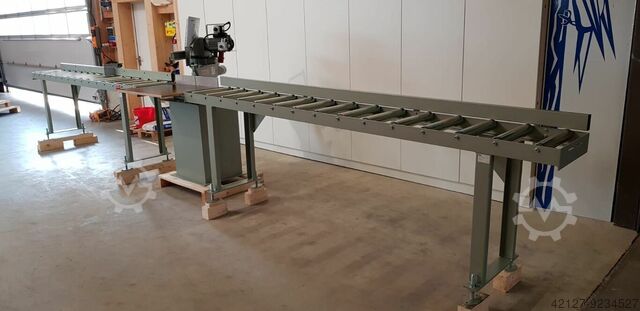

Image: similar.
Machine is still in original packaging.
