High-bay warehouse pallet racking system
Nedcon NS / Regallänge: 19.100 mm / St.: 9.000x1.100 mm / Tr. 3.700 mm

Name: Nedcon NS / Regallänge: 19.100 mm / St.: 9.000x1.100 mm / Tr. 3.700 mm
Brand: Nedcon NS / Regallänge: 19.100 mm /
Price: 3860 EUR
Availability: InStock

Fix ár plusz ÁFA-val

3 860 EUR

Állapot

Használt

Helyszín

Neukamperfehn Németország

High-bay warehouse pallet racking system Nedcon NS / Regallänge: 19.100 mm / St.: 9.000x1.100 mm / Tr. 3.700 mm

Nedcon NS / Regallänge: 19.100 mm / St.: 9.000x1.100 mm / Tr. 3.700 mm

Alapadatok

Gépmegnevezés:: High-bay warehouse pallet racking system

Gyártó:: Nedcon NS / Regallänge: 19.100 mm /

Modell:: St.: 9.000x1.100 mm / Tr. 3.700 mm

Állapot:: jó (használt)

Ár és helyszín

Fix ár plusz ÁFA-val

3 860 EUR

Helyszín:: Hauptstraße 157, 26835 Neukamperfehn, Deutschland

Hívás

Ajánlat részletei

Hirdetés azonosító:: A188-28231

Frissítés:: utoljára ekkor: 28.03.2025

Leírás

Technical specifications for the pallet racking system:
Rack system: Nedcon
Type: NS

Technical specifications for installation:
Number of rack rows: 1
Length per rack row: 19,100 mm
Number of bays per rack row: 5
Number of levels plus floor level: 5

Technical specifications for volume:
Pallet spaces per bay: 24
Number of pallet spaces per row: 120
Total number of pallet spaces: 120

Assuming:
Loading equipment: Euro pallet EN 13698-1
Dimensions: 1,200 x 800 x 150 mm
Total height including pallet: n.d.
Weight per pallet (max.): 750 kg

Delivery includes:
6x pallet rack uprights, used
Material color: cream-white
Frame profile: 1007825
Profile dimensions: 100 x 78 x 2.5 mm
Adjustment pitch: 50|50 mm
Incl. cross and diagonal braces,
Footplates
The uprights are pre-assembled
(screwed framework)
Upright height: 9,000 mm
Upright depth: 1,100 mm

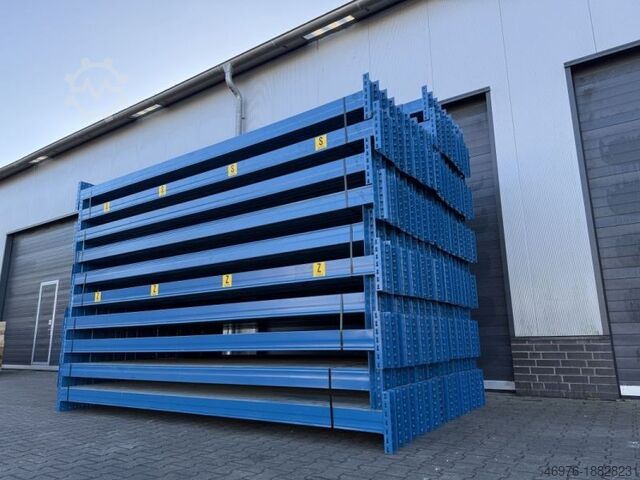

50x pallet rack crossbeams, used
Material color: blue
Box profile: 130 x 50 mm
Hooks: 7 HK (hooks)
Clear width: 3,700 mm
Max. load per pair of crossbeams: 3,000 kg at constant load Distributed load

100x locking pins, used
Material color: Sendzimir galvanized
For securing the longitudinal beams
against accidental lifting

24x bolt anchors, new
Manufacturer: Hilti
Type designation: HST2 M12x105/10
Design: Carbon steel, galvanized
Approved for: Cracked concrete

12x leveling plates, used
Design: Fully galvanized
For leveling shelf supports that are
installed on uneven ground

1x load plate
with information on bay and compartment loads,
manufacturer, and commission number
Dimensions: 420 x 297 x 3 mm

Your contact persons in our company:
Mr.: Andre Evering
Chjdpfsv Tw Tijx Amnod
Mr.: Mario Klöver
Mr.: Falk Deutsch

General information about the item:
This item is available for pickup only. Any additional transport or shipping of this item will incur additional costs, which can be requested from us separately depending on the delivery location or scope of delivery.
